About Design Center

The AtScale Design Center is where you create your models. The following sections describe the main components of the Design Center.

The main navigation bar enables you to open panels and pages, where you can perform such tasks as browsing your Git repository and deploying your catalogs.

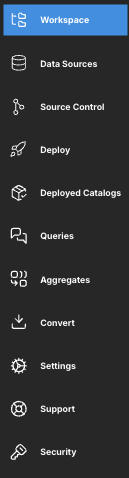

The main navigation bar, with the Workspace icon highlighted.

Note

Some options of the main navigation bar are only available to AtScale admins, and therefore may not appear, depending on your permissions.

For more information on the panels and pages available in the main navigation bar, see the following sections:

Canvas Tab

The Canvas provides a graphical representation of your model, including all of the dimensions, datasets, relationships, and other objects that comprise it.

The Canvas tab, displaying a model.

You can switch to the Canvas by clicking the Canvas tab at the top of the page. This tab is available for models as well as dimensions.

You move around the Canvas by clicking and dragging the background. You can also zoom in and out using your mouse's scroll wheel.

Clicking on an individual object selects it. That object and any other objects it has relationships to are highlighted. You can also click and drag objects to reposition them on the Canvas.

You can also add objects (such as datasets) to models and dimensions by dragging them from the Workspace panel to the Canvas tab.

Text Editor Tab

You can use the Text Editor tab to view and edit the underlying SML for individual objects in your models. To switch to the Text Editor, click the Text Editor tab at the top of the page.

The Text Editor tab, displaying a model SML file.

Here, you can edit your object files as you would in any IDE. The editor provides syntax highlighting and other features to facilitate your work.

Pressing Ctrl+F within the Text Editor opens the search and replace window.

The Search and Replace window of the Text Editor.

Right-clicking within the Text Editor opens a menu that contains additional options, such as copy/paste and text replace.

The right-click menu of the Text Editor, showing options for Change All Occurrences, Cut, Copy, Paste, and Command Palette.

From here, you can also open the Command Palette, which provides additional commands you can perform, as well as keyboard shortcuts for performing them quickly.

The Command Palette, showing additional commands and their keyboard shortcuts.

Model Validator

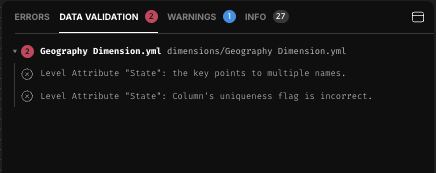

The Model Validator panel at the bottom of the page displays errors, warnings, and informational messages about your models as you work.

The Model Validator, with the Info tab selected.

When a new version of SML is released, the Model Validator also displays messages about changes that need to be made to your models in order to upgrade. You can upgrade your files by clicking the Fix Error button for each message.

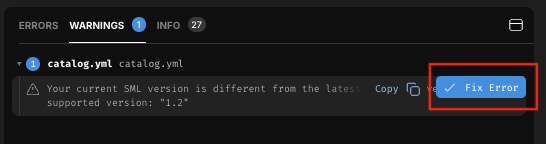

A warning about a new SML version in the Model Validator, with the Fix Error button highlighted.
