Adding Google BigQuery Data Warehouses

A Google BigQuery data warehouse is an instance of Google BigQuery that contains the tables and views that you want to access as model facts and dimensions. It also contains aggregate table instances that either you or the AtScale engine creates in a BigQuery dataset that you specify.

Before you begin​

  • Ensure that you are logged in to AtScale as an admin user.
  • Aggregate Dataset: Ensure that you know the BigQuery dataset and ProjectID to use for aggregate tables to be built in the data warehouse. AtScale reads and writes aggregate data to this dataset. The AtScale service account user must have ALL privileges for this dataset.
  • Assign your Google BigQuery service account these roles: BigQuery Data Editor and BigQuery Job User. The service account used will be the one used for setting up system query role. If aggregates are being stored in a project different from the project where fact data resides, then this service account needs BigQuery Data Viewer and BigQuery Job User for all the projects that contain fact data.
  • The Google BigQuery service account used for setting up large/small query roles needs to have read access on all the projects with Fact data, plus on the project where aggregate dataset resides. At the minimum, the BigQuery Data Viewer and BigQuery Job User roles.
  • Consider that Google BigQuery Views cannot be previewed in Design Center.

Authentication​

You can choose to authenticate with a JSON credential file, or with Application Default Credentials (ADC)/Environment-provided service account. For additional details about Google authentication types, see Google Cloud Authentication. In both cases you need to perform some steps in advance.

When using the JSON credential file for your Google Cloud Platform service account:

  • Ensure that the file can be accessed by AtScale.

  • The file for the service accounts can be created from the Google Cloud Platform console from the Menu > IAM & admin > Service accounts. The file contains seven keys and their associated values. For example:

    { "name": "projects/my-project-123/serviceAccounts/my-sa-123@my-project-123.iam.gserviceaccount.com", "projectId": "my-project-123", "uniqueId": "113948692397867021414", "email": "my-sa-123@my-project-123.iam.gserviceaccount.com", "displayName": "my service account", "etag": "BwUp3rVlzes=", "oauth2ClientId": "117249000288840666939" }

The authentication that is based on Google Compute Node service account credentials can be used with the following setup:

  • A user-managed service account is attached to the Google Compute Node that runs AtScale.
  • The service account has access to project(s) or impersonates another service account that has access in Google BigQuery.
  • If the service account has access to multiple Google BigQuery projects, then multiple AtScale data warehouses can be set up corresponding to the needed projects.

You can use the following commands to check which projects the compute node service account has access to:

  • gcloud config list
  • gcloud projects list

ADC-based authentication from on-premise node​

The GOOGLE_APPLICATION_CREDENTIALS environment variable is used for providing the location of a credential JSON. You can use it in AtScale in the following way:

  1. Update the ~/.bash_profile file of the atscale user, and set the environment variable GOOGLE_APPLICATION_CREDENTIALS to point to the location of the service account key or credential file:

    cat ~/.bash_profile | grep GOOGLE
    export GOOGLE_APPLICATION_CREDENTIALS=/home/atscale/SAcctCreds.json

  2. Reload bash_profile using the source command, or start a new terminal.

    source ~/.bash_profile

  3. Restart all AtScale services; this needed to pick up the environment variable:

    /opt/atscale/bin/atscale_stop
    /opt/atscale/bin/atscale_start

  4. Check if the environment variable is picked up:

    cat /proc/`/opt/atscale/current/pkg/jdk/bin/jcmd -l | grep engine | awk '{print $1}'`/environ | tr '\0' '\n' | grep GOOGLE

    You should get a result like this:

    GOOGLE_APPLICATION_CREDENTIALS=/home/atscale/SAcctCreds.json

Procedure​

To add a new Google BigQuery data warehouse:

  1. In Design Center, open the main menu and select Settings. The Settings page opens.

  2. In the Settings panel, click Data Warehouses.

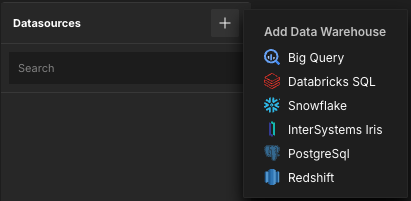

  3. In the Add Data Warehouse section, click the BigQuery icon. The Add Data Warehouse panel opens.

  4. Enter a unique Name for the data warehouse.

  5. (Optional) Enter the External connection ID. The value of this field defaults to the data warehouse name but can be overriden by enabling the Override generated value? option.

  6. In the Aggregate Project ID field, enter name of the ProjectID in which the Aggregate Schema resides.

    The service account used for setting up system query role will be the one that creates aggregates and needs have All privileges on the project.

  7. In the Aggregate Schema field, enter the name of the BigQuery dataset to use when creating aggregate tables. You must create a dataset; AtScale does not create one automatically.

  8. (Optional) Specify whether the data warehouse is a Read-only source.

    • Select this option if AtScale will be configured to access this database with credentials that do not have permission to create new tables, or if you need to prevent AtScale from placing any aggregate tables in this data warehouse.
    • If Read-only source is enabled upon editing an existing data warehouse with aggregates present, all existing aggregates stored in this data warehouse will be deactivated.

  9. (Optional) Enable impersonation for the data warehouse by selecting the Enable to impersonate the client when connecting to data warehouses checkbox. This allows the data warehouse administrator to apply more detailed security policies when securing data. When enabled, you can also enable the following options:

    • Always use Canary Queries: Determines whether canary queries are required in the event of aggregate misses.
    • Allow Partial Aggregate Usage: Enables mixed aggregate and raw data queries.
info

AtScale cannot import data-loader bundles while impersonation is enabled. It is suggested that you import your desired data-loader bundles, commonly used for training, before enabling impersonation or use a separate AtScale installation for training purposes.

  1. In the Authentication section, select one of the following sources for the Service Account:

    • Use service account key JSON file: When set, you need to upload the JSON credential file as described below.
    • Use Application Default Credentials (ADC)
    • Use Application Default Credentials (ADC) impersonated with Service Account

  2. (Optional) Specify a connection to a Google Cloud Bucket:

    1. Enable the Connect a Google Cloud Bucket option.
    2. If you selected Use service account key JSON file for authentication, upload the JSON file in the Service account key json file field.
    3. If you have chosen Use Application Default Credentials (ADC) impersonated with Service Account for authentication, enter the Service principal.
    4. Enter the Bucket name. Ensure that the bucket you use is multi-regional.

  3. Click Test Bucket Connection to test the data warehouse connection.

  4. In the Access Controls section, add the users and groups that you want to be able to access the data warehouse and its data. For more information on how data warehouse security works in AtScale, see Data Warehouse Security.

  5. Click Apply.

Add a GBQ Connection​

After setting up your data warehouse, you must add a connection to the data warehouse before you can run queries.

To add a Google BigQuery connection:

  1. On the Data Warehouses page, click the expand icon for your data warehouse.

  2. In the Add Connection field, click the plus icon. The Add Big Query Connection panel opens.

  3. Enter a unique Name for the connection.

  4. If authenticating with a JSON credential file:

    1. (Optional) Enable the Project Id for query execution option, then enter the BigQuery project in which queries are executed. This value is passed when creating a job. If not specified, AtScale uses the project associated with the service account key JSON.
    2. Upload the file associated with your Google BigQuery Connection.

  5. (Optional) If authenticating with ADC, enable the Project Id for query execution option, then enter the BigQuery project in which queries are executed. This value is passed when creating a job. If you do not provide this value, AtScale uses either the projectID associated with the service account attached to the compute node, or the service account defined by the GOOGLE_APPLICATION_CREDENTIALS variable.

  6. If authenticating with ADC impersonated with Service Account:

    1. (Optional) Enable the Project Id for query execution option, then enter the BigQuery project in which queries are executed. This value is passed when creating a job. If you do not provide this value, AtScale uses either the projectID associated with the service account attached to the compute node, or the service account defined by the GOOGLE_APPLICATION_CREDENTIALS variable.
    2. Enter the Service Principal.

  7. Click Test connection to test the connection.

  8. Click Apply.

Multiple connections can be set up, such that aggregate creation is handled by a different service account than the one that handles user query execution.
